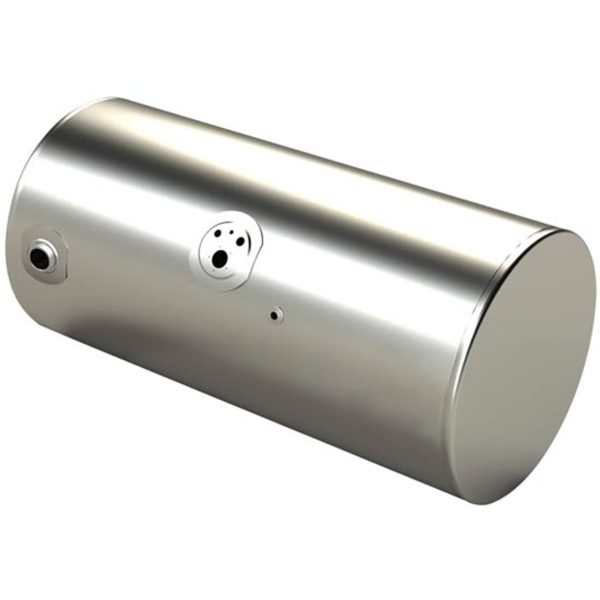

100 Gallon Front Fill Fuel Tank 22 X 62 Inch For Kenworth Forward Manifold

Description

This Fuel Tank is manufactured to OE specifications with the same materials as used in OE manufacturing, is rigorously tested under FMSCA regulations and ISO certified. We are so confident in the quality of this replacement fuel tank we offer a 2 year warranty from the date of purchase.

* High Quality Aluminum Replacement Tank
* For 2007 And Older Kenworths
* Gallons U.S. – 100
* Diameter – 22 Inches
* Length Seam To Seam – 60 Inches
* Length Over All – 62 Inches
* Filler Neck – Front Fill
– 4.00 Inches From Front Weld Seam
– 34.75 Inches Above Horizontal Weld Seam – Back Of Tank
* Manifold With Sending Unit Hole
– 26.00 Inches From Rear Weld Seam
– 27.50 Inches Above Horizontal Weld Seam – Back Of Tank
* Drains Or Cross Overs
– 26.00 Inches From Rear Weld Seam
– 3.75 Inches Below Horizontal Weld Seam – Back Of Tank
* Caps And Fittings Sold Separately, Not Included With Tank
* Sold Individually
* Made In North America
* Warranty On Fuel Tanks Against Defects In Workmanship & Material From Date Of Purchase

* Fits Kenworth T300 1993 thru 2007
* Fits Kenworth T450 1993 thru 2007
